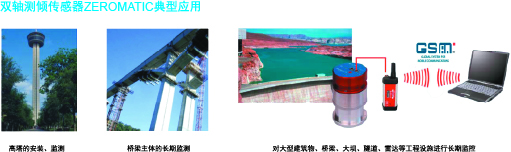

ZEROMATIC To meet the long-term condition monitoring of large engineering facilities and find any small changes in absolute horizontal and vertical directions in time, the sensor has ITS own HTR compensation and built-in motor to automatically reverse movement within the defined cycle to automatically complete zero deviation calibration to improve reliability.

  • Product parameters
  • 适用范围
  • 产品描述
  • 参数配置

瑞士WYLER-ZEROMATIC双轴测倾传感器

瑞士WYLER-ZEROMATIC双轴测倾传感器

瑞士WYLER-ZEROMATIC双轴测倾传感器

瑞士WYLER-ZEROMATIC双轴测倾传感器

瑞士WYLER-ZEROMATIC双轴测倾传感器


ZEROMATIC technical parameters:
The test range±1°
Visual range±5°
Zero deviation±1Angle of seconds
The linear error0.5%MW
The temperature error 0.08%ME /℃
Operating temperature-10℃- +60℃
Period of revolution<2 minutes
Time interval between two turns>2 minutes
The power supply24 V±10%DC
Overall dimensionsHeight 193mm diameter 120mm
The weight of the4.03Kg(ZEROMATIC1/2)

4.15Kg(ZEROMATIC2/2)


ZEROMATIC To meet the long-term condition monitoring of large engineering facilities and find any small changes in absolute horizontal and vertical directions in time, the sensor has ITS own HTR compensation and built-in motor to automatically reverse movement within the defined cycle to automatically complete zero deviation calibration to improve reliability.
