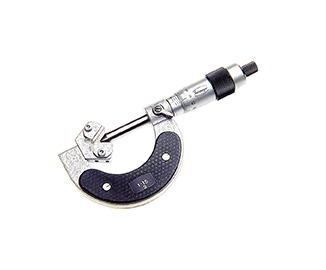

F.S.G. Taper slot outside micrometer (for measuring taps with odd slots, etc.), accuracy according to DIN 863, measuring needle diameter 8mm, scale 0.01mm

  • Product parameters
  • 适用范围
  • 产品描述
  • 参数配置


德国-F.S.G. 外径千分尺


Measuring rangeThe order number(3 H/9 H)
1-15mm76 9326 002 20
3-20mm76 9326 003 20
20-35mm76 9326 004 20
35-50mm76 9326 005 20
50-65mm76 9326 006 20
65-80mm76 9326 007 20

德国-F.S.G. 外径千分尺

Measuring rangeThe order number5H(7 H)
5-25mm76 9326 101 20
25-45mm76 9326 102 20
45-65mm76 9326 103 20
65-85mm76 9326 104 20
85-105mm76 9326 105 20

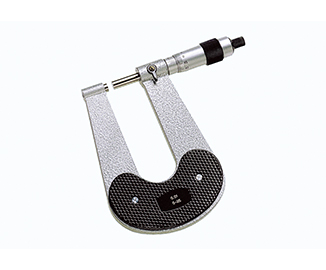

F.S.G.Plate thickness micrometer， pitch0.5mm，calibration0.01mm


Measuring rangeThe order numberProbe diameter
0-25mm76 9324 001 208mm
25-50mm76 9324 002 208mm
0-25mm76 9324 003 2015mm


F.S.G. Taper slot outside micrometer (for measuring taps with odd slots, etc.), accuracy according to DIN 863, measuring needle diameter 8mm, scale 0.01mm
