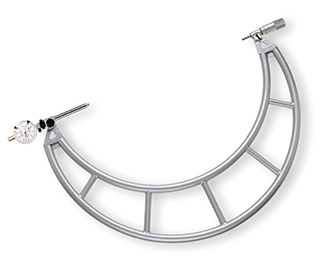

F.S.G large outside micrometer

● the error limit refers to DIN863

● pitch 1 mm

● Handle and sleeve of rotary drum are treated with rust prevention

● Probe surface carburizing treatment

● Measuring range 25mm

● reading of 0.01 mm

● Scale value 0.01mm

德国-F.S.G 大尺寸机械式外径千分尺系列


Measuring rangeThe order number
0-10076 9310 001 20
100-20076 9310 602 20
200-30076 9310 603 20
300-40076 9310 604 20
400-50076 9310 605 20
500-60076 9310 606 20
600-70076 9310 607 20
700-80076 9310 608 20
800-90076 9310 609 20
900-100076 9310 610 20
1000-125076 9310 104 20
1250-150076 9310 105 20
1500-175076 9310 106 20
1750-200076 9310 107 20
2000-225076 9310 108 20
2250-250076 9310 109 20
2500-275076 9310 110 20
2750-300076 9310 111 20
3000-350076 9310 205 20
3500-400076 9310 206 20
4000-450076 9310 207 20
4500-500076 9310 208 20
5000-550076 9310 209 20
5500-600076 9310 210 20
