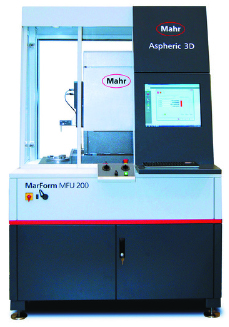

Mahr-marform MFU 200 Aspheric 3D Shape Measurement Workstation

The MarForm MFU 200 Aspheric 3D is a precision measurement instrument with extremely low measurement uncertainty, ideal for optimizing machining processes.

Product parameters
适用范围
产品描述
参数配置

德国Mahr-MarForm MFU 200 Aspheric 3D形状测量工作站

The use of a measuring station in a shock absorbing cabinet protects the measured object from external interference such as vibration and dust.

Practical applications include optical measurement of the shape deviation of optical elements, tactile measurement of circular cylinders on optical elements, calculation of axial offset relative to the lens vertex (optical axis offset to mechanical axis) and tactile measurement of the inclination of the base of optical elements. In addition, the MarForm MFU 200 Aspheric 3D, a high-precision 3D measurement station, provides kinematic options for measuring optical free shapes, off-axis Aspheric surfaces and torus.

MarForm MFU 200 Aspheric 3D
Roundness deviation (µm+µm/mm measurement height) *	0,01 + 0,0002
Straightness deviation /100 mm Measurement path (µm)**, Z axis	0.1
Z/C axis contact direction parallelism deviation, measurement path (µm)	0.6
Measure speed (mm/s), Z axis	0.1 至 50
Positioning speed (mm/s), Z axis	0.1 至 50
Roundness deviation (µm+µm/mm measurement height) **	0,02 + 0,0004
Deviation of straightness/total measurement path (µm)**, X axis	0.3
Axial runout deviation (µm+µm/mm measurement radius) *	0,02 + 0,0002
Axial runout deviation (µm+µm/mm measurement radius) **	0,04 + 0,0004
Aligning and leveling table	automatic
Table diameter (mm)	180
Workbench load, center (N)	200
Speed (RPM) 50 Hz / 60 Hz	0.1 至 200

The MarForm MFU 200 Aspheric 3D is a precision measurement instrument with extremely low measurement uncertainty, ideal for optimizing machining processes.
