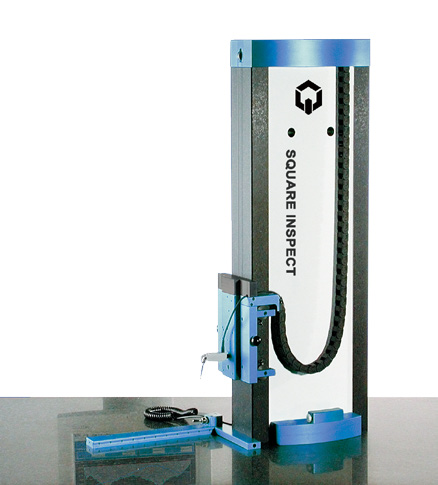

SCK Verticality tester
SCK Verticality tester

SCK series vertical degree tester used for the calibration of square a new type of high precision verticality measurement system, is composed of high precision square and marble floating measurement system, is widely used in the measurement units square measuring perpendicularity detection and factory products, reasonable structure design and new type of gas bearing to ensure the stability and high precision, professional measuring software can meet the demand of users, The certificate is automatically generated after the detection is complete.

  • Product parameters
  • 适用范围
  • 产品描述
  • 参数配置

Technical characteristics


● Easy to operate, fast movement.


● Stable marble base, not easily affected by temperature


● Compact, portable high-precision structure design


● High precision air floating motion system ensures smooth and fast movement of the measuring system, and no friction up and down movement


● The measurement software is easy to operate, automatic data processing, directly generate certificate format and judgment of the measurement results

野齿仪器-SCK垂直度检查仪

model单位SCK300SCK500SCK700SCK1000
Measuring rangemm3005007001000
Accuracy of measurementμm≤0.5+L(mm)/500
The resolution of theμm0.1
Measurement systemμmIncremental probe
Test temperature℃20℃±1℃
Environmental humidity
Humidity of 50% plus or minus 5%；
Air pressureMpa0.4 - 0.6 Mpa


SCK series vertical degree tester used for the calibration of square a new type of high precision verticality measurement system, is composed of high precision square and marble floating measurement system, is widely used in the measurement units square measuring perpendicularity detection and factory products, reasonable structure design and new type of gas bearing to ensure the stability and high precision, professional measuring software can meet the demand of users, The certificate is automatically generated after the detection is complete.
