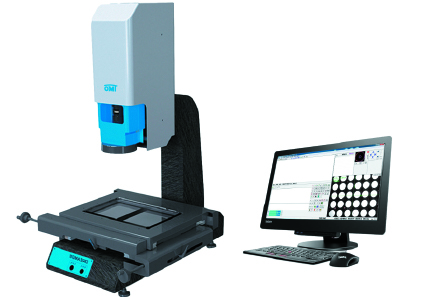

OMT manual image measuring instrument
OMT manual image measuring instrument

The manual image measuring instrument adopts the technology of German OMT company, the base and support parts are made of marble, and the cast iron cantilever greatly enhances the stability of the working state. It is widely used in tablet computers, mobile phones, semiconductors, machine parts and other industries.

  • Product parameters
  • 适用范围
  • 产品描述
  • 参数配置

主要特点：

● 采用大理石主体平台和立柱，增强了结构的稳定性，确保测量精度

● 三轴光杠传动

● 手动无级变焦镜头

● 光栅尺分辨率0.2μm

● 配备高分辨率工业级彩色相机

● LED光源

● D-Vision软件

● 0.5X~2X变焦镜头可选

OMT-手动影像测量仪

OMT-手动影像测量仪







Moving speed

modelOMT250OMT300
measuring range     mm250X150X150300X200X150
Motion stroke     mm250×150300×200
Transmission modeThree axis polished rod drive
resolving power      μm0.2
Allowable error Exy μm2.5+L/200
Z-axis travel     mm150
camera lens6.5:1 or 10:1 manual stepless zoom
Moving speed     m/s200
data processorIt can measure point, line, circle, arc, center distance and angle alignment
Image systemHigh resolution industrial color camera
lighting

White LED coaxial light, white LED transmitted light

White LED eight zone surface ring light

work environment18℃ - 22℃ , humidity 25％~75％


Optional lens technical parameters:

camera lensMagnificationWorking distance（mm）Maximum site（mm）Minimum site（mm）
0.5x10.5-61.516314.0x10.42.4x1.8
0.75x15-9210410.5x7.81.8x1.35
Standard configuration21-123887.0x5.21.2x0.9
1.5x31.5-184.5505.25x3.90.9x0.67
2x42-246353.5x2.60.6x0.45




The manual image measuring instrument adopts the technology of German OMT company, the base and support parts are made of marble, and the cast iron cantilever greatly enhances the stability of the working state. It is widely used in tablet computers, mobile phones, semiconductors, machine parts and other industries.
