Trimos-Optima
Trimos-Optima

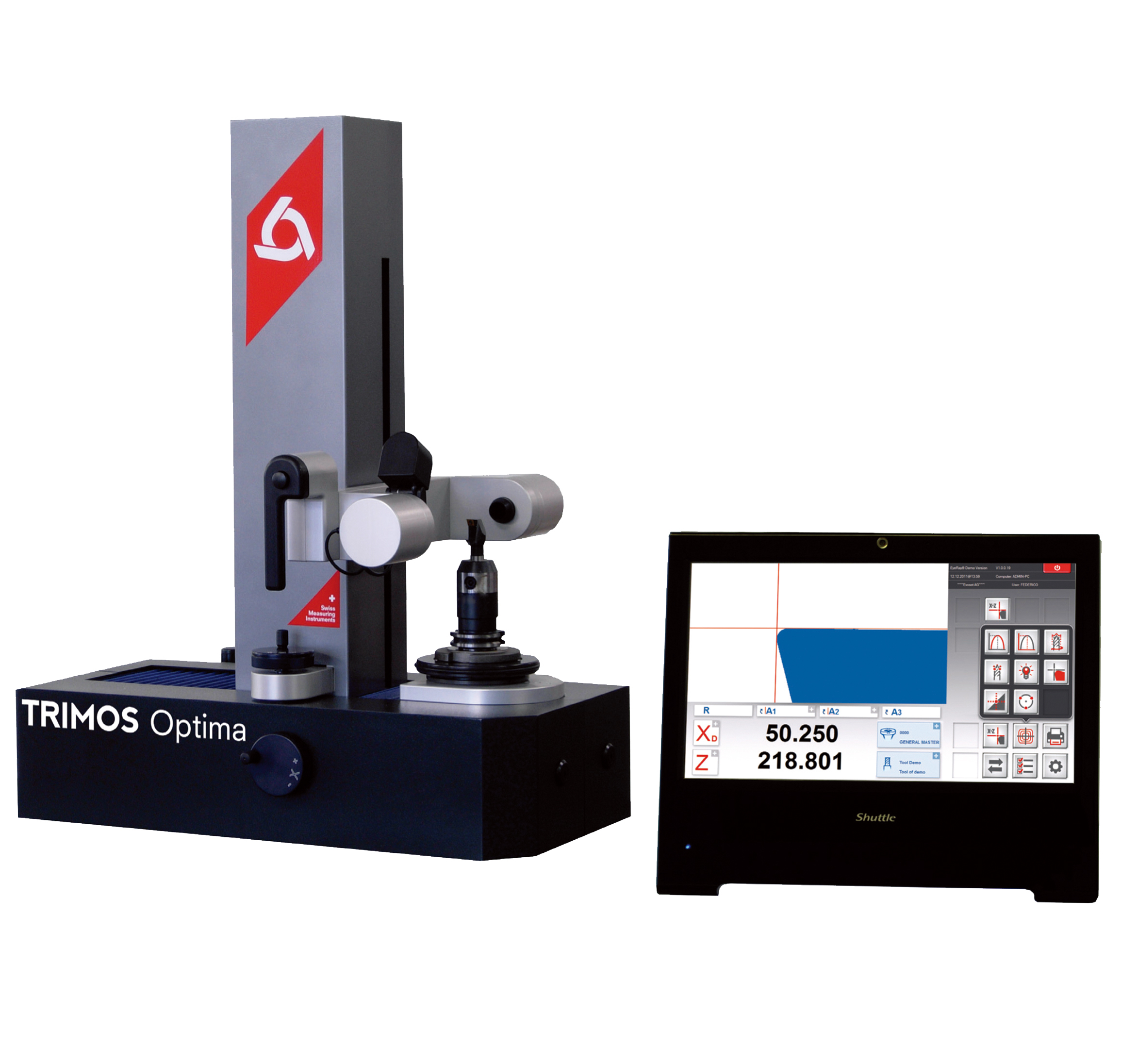

Trimos-optima tool tester adopts high resolution CCD optical measurement system and high precision and high stability data processing system, which can quickly measure all kinds of tool parameters, ensuring the debugging and operation of CNC machining program, high efficiency and stability of CNC machine tools and CNC machining center work.

  • Product parameters
  • 适用范围
  • 产品描述
  • 参数配置

Main features:

● Automatic tool image measurement and focus

● Automatic edge finding and positioning measurement of tool tip

● CCD digital imaging contactless measurement system

● The computer runs Windows 7

● Heidenhain metal grating system, standard spindle with protective sleeve, optional vacuum spindle

● Data exchange with CNC machining center

● More intelligent and flexible software to choose from

Trimos-Optima对刀仪



Trimos-Optima对刀仪

Trimos-Optima对刀仪

Trimos-Optima对刀仪

Trimos-Optima对刀仪


model400/400400/600
Diameter range400mm400mm
Length range400mm600mm
weight120kg140kg
Coaxiality error (spindle seat position)0.001mm
The resolution0.001mm
Data interfaceRs232c/USB/RJ45
The environment temperature0℃ - +40℃
Environmental humidity20% - 80%

Note: More measuring arms to choose from, wider measuring range

Trimos-optima tool tester adopts high resolution CCD optical measurement system and high precision and high stability data processing system, which can quickly measure all kinds of tool parameters, ensuring the debugging and operation of CNC machining program, high efficiency and stability of CNC machine tools and CNC machining center work.

Standard configuration:

● 15.6 inch touch-screen computer

When the host

When the workbench

● Label printer

● Power adapter

● Test report, operation manual
